ALL SEASON insulated roof with concealed slope
“Protection with the power of beauty, Anywhere, anytime.”

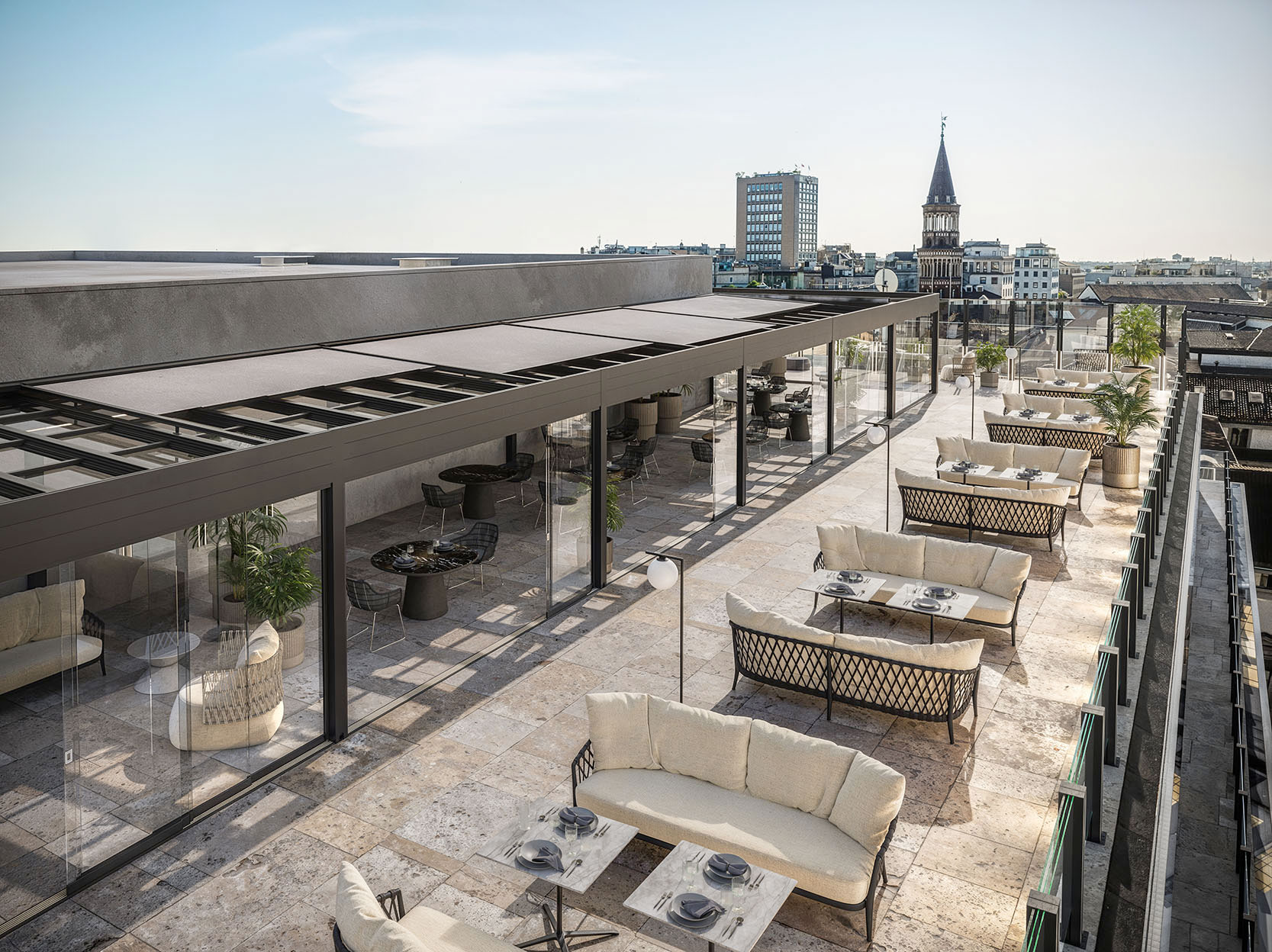

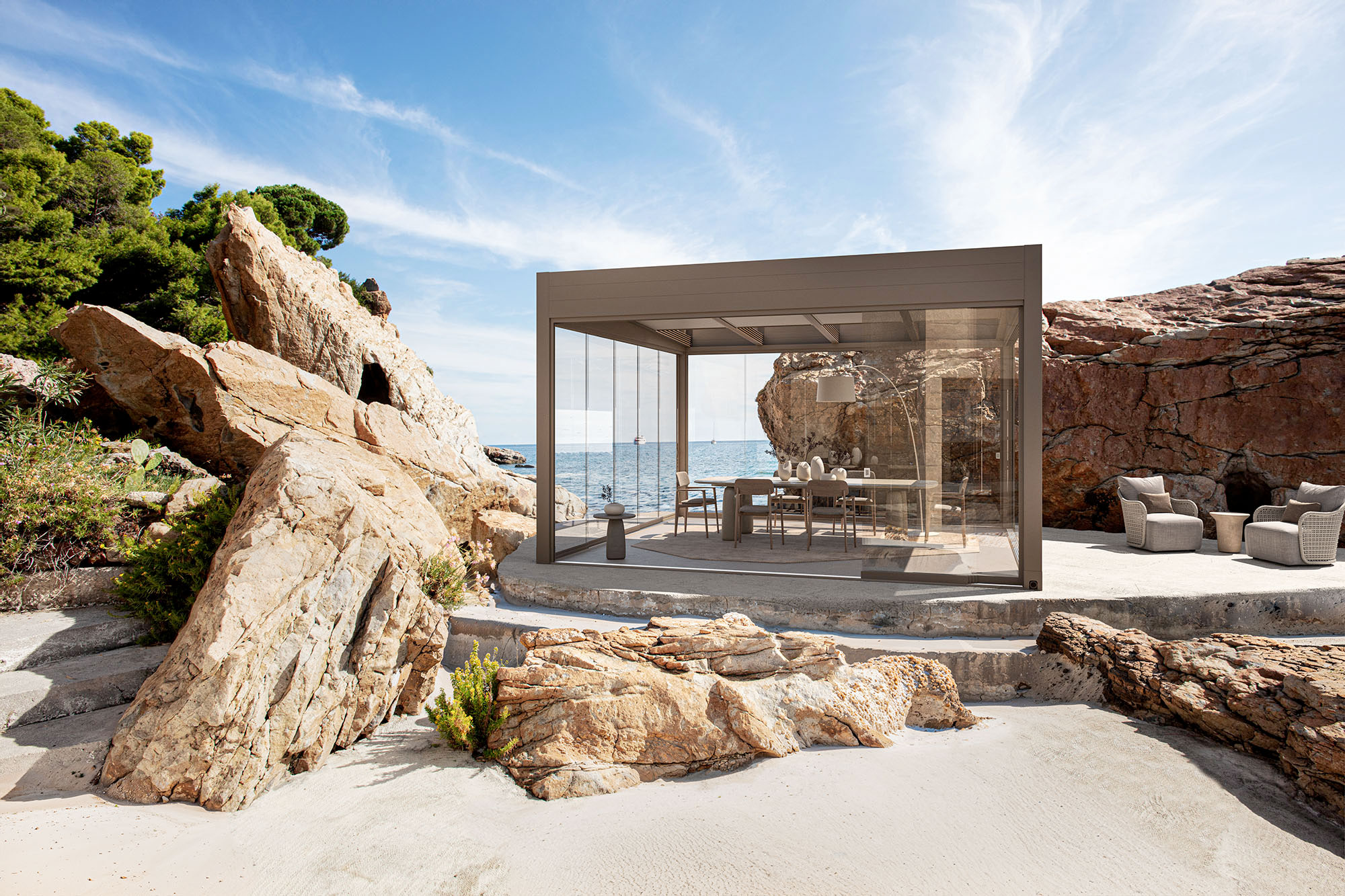

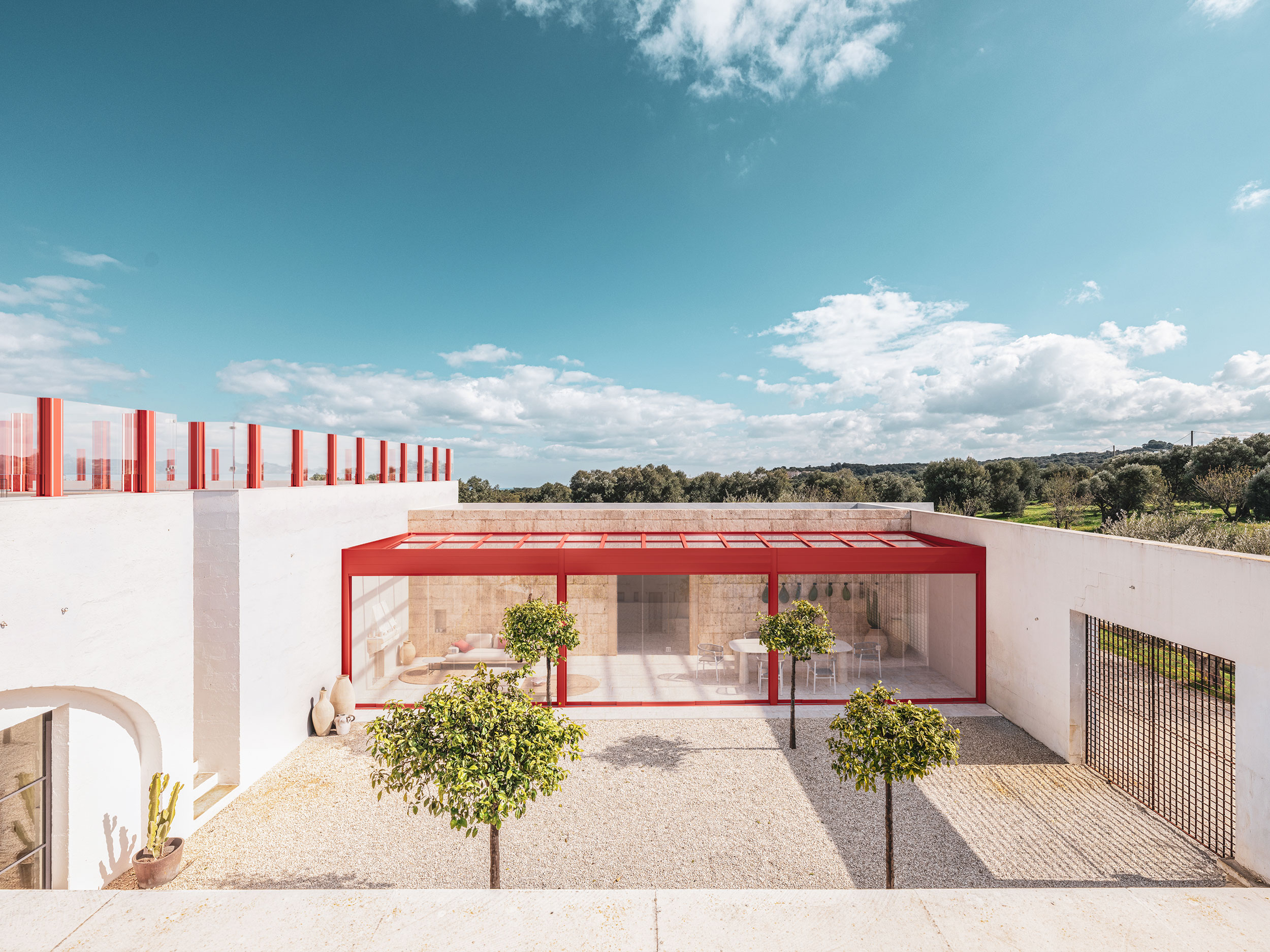

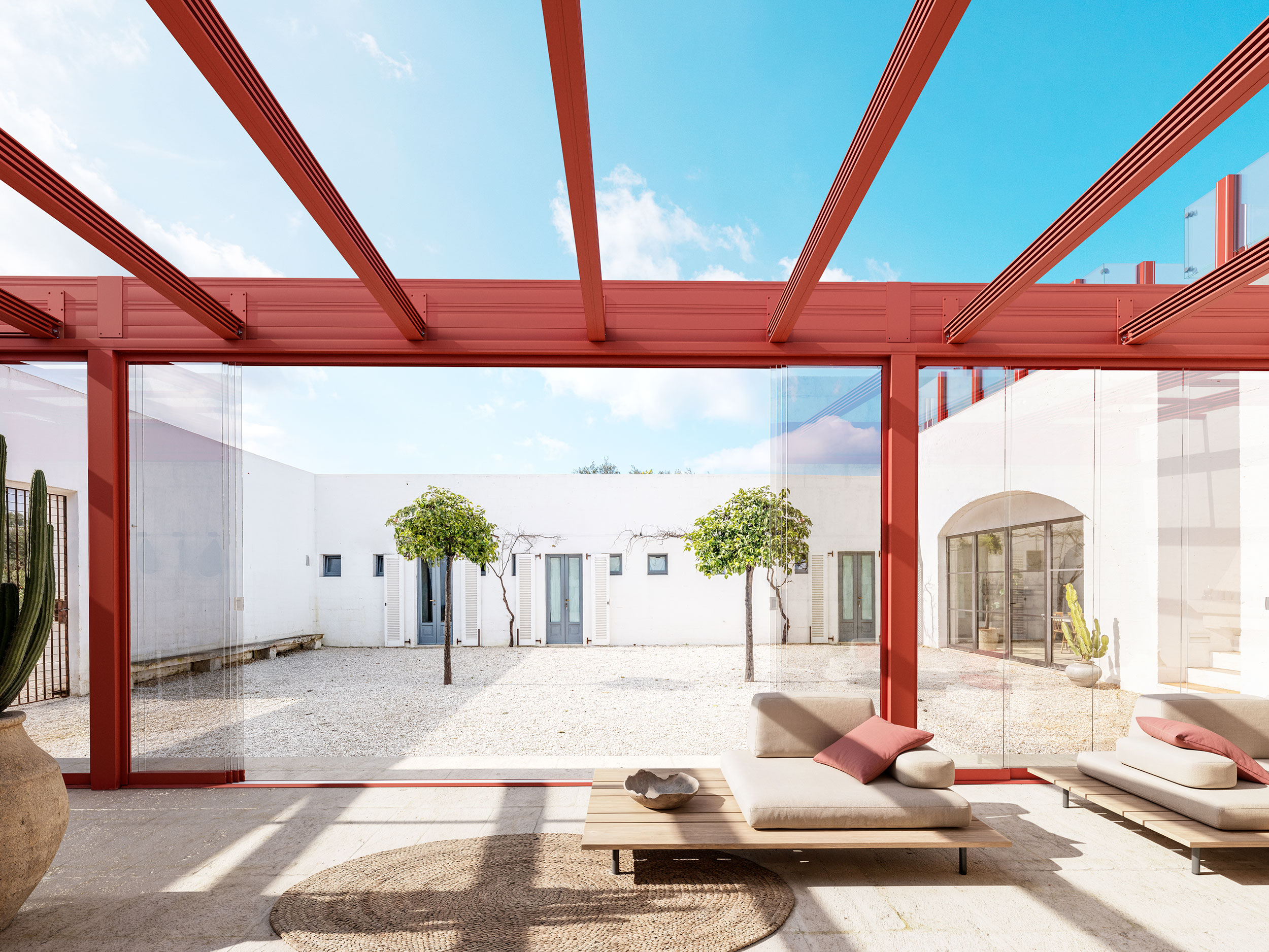

Nesos is the ALL SEASON roof, fixed or retractable up to 80%, guaranteeing air and water tightness, high snow load resistance and providing ideal insulation of the outdoor space.
The aluminium fascia conceals the roof’s slope to create a clean and continuous aesthetic that integrates naturally into residential and hospitality contexts.

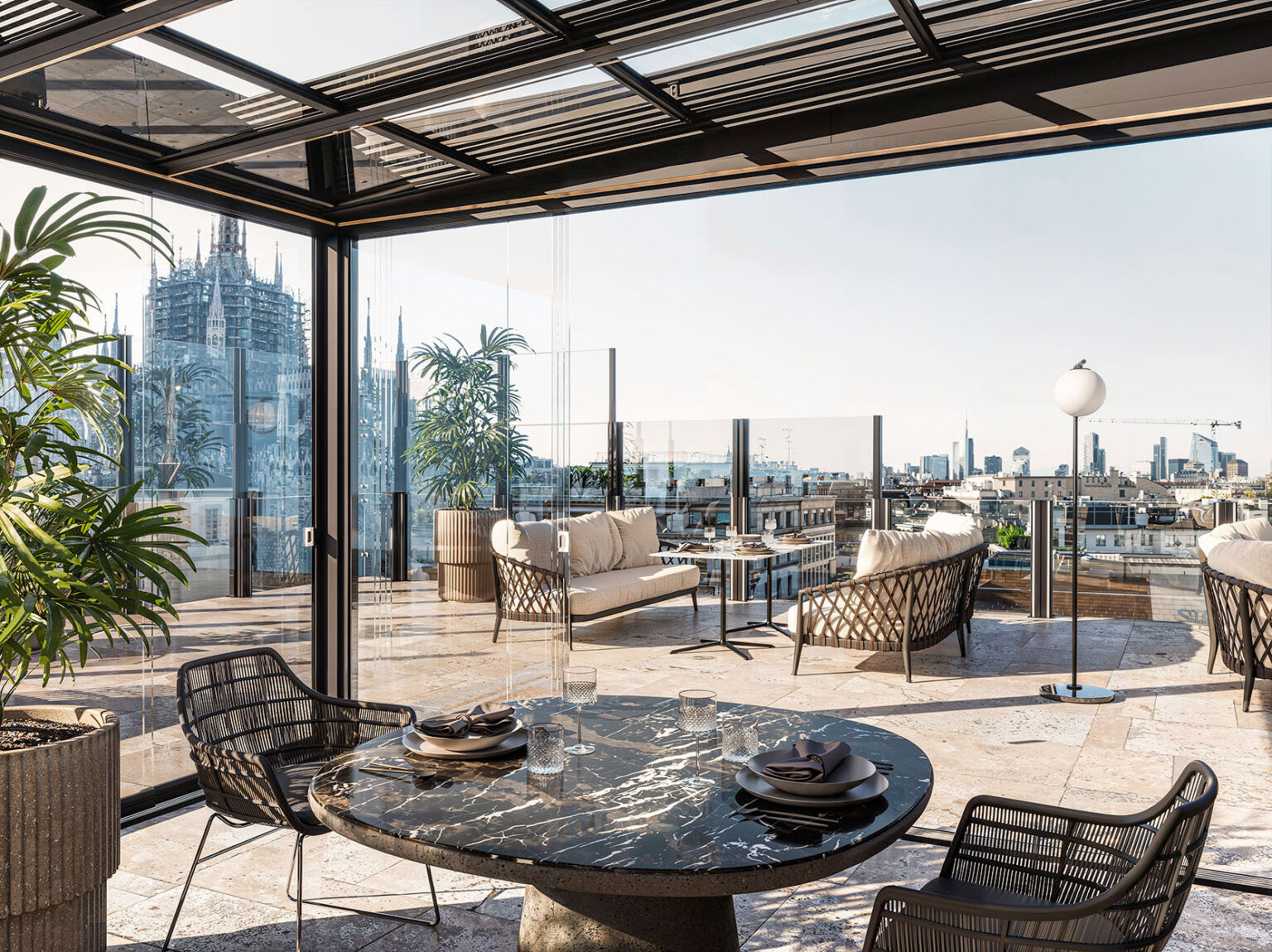

There are three roof versions designed to modulate light and comfort according to design requirements: laminated glass for maximum transparency, semi-transparent polycarbonate or blackout sandwich panels.
In the fixed roof version, photovoltaic systems can be installed on the sandwich panels to provide even more efficient and sustainable protection.
Nesos can be paired with Visio panoramic glass panels, for total perimeter protection year-round, and with LED lighting systems integrated in the structure. Each project is unique and versatile thanks to the possibility of combining sun screening systems and endless customisation options.
Configurations
Nesos Mobile, wall mounted
Nesos Fix, wall mounted
Nesos Mobile, freestanding
Technical information
Certification
UNI EN1090
Load resistance
Up to 150 kg/m2
Depth
Up to 5.000 mm
Width
Unlimited
Pairable modules
Unlimited
• Nesos Mobile
Opening
66%, 75%, 80%
Panels
66.2 laminated glass
16 mm opal honeycomb polycarbonate gTOT = 0.29
16 mm sandwich gTOT = 0.10
Laminated glass
Transparent, Solar control, Smoked, Bronze-tinted, White plastic, Tempered
Movement
Motorised with SOMFY system
• Nesos Fix
Panels
66.2 laminated glass
16 mm honeycomb polycarbonate
16-32-55-82 mm sandwich
Laminated glass
Transparent, Solar control, Smoked, Bronze-tinted, White plastic, Tempered
• Nesos Photovoltaic panel – Photovoltaic system mounted on fixed roof
Panels
16-32-55-82 mm sandwich

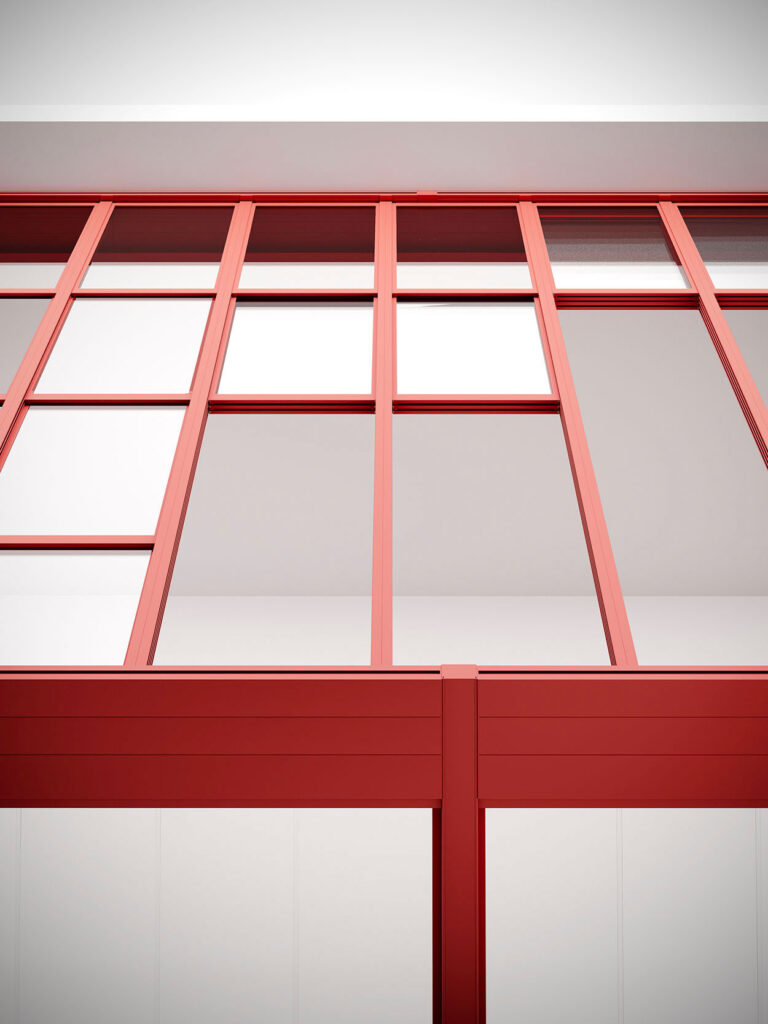

Profiles
Aluminium
Optional
Roof tensioned shade

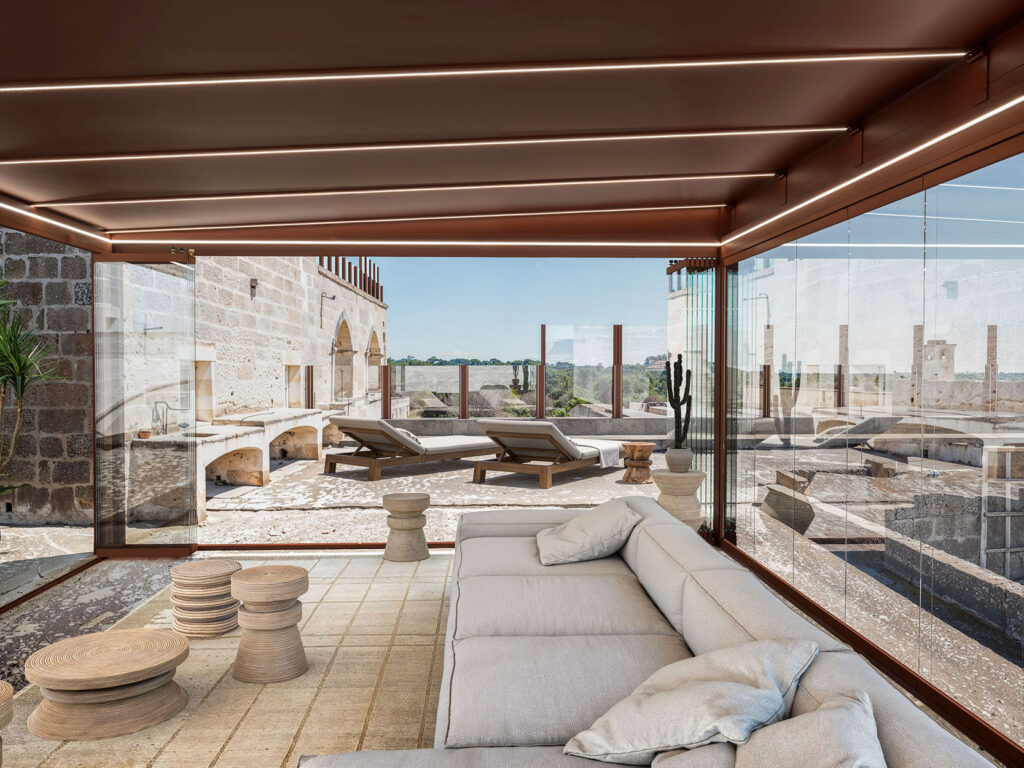

LED lighting
Visio Flow sliding glass panels
Visio Fold stackable glass panels
Illuminazione a LED
Sensori automatici di temperatura e pioggia (Somfy)
Tenda tensionata integrata
Tetto con apertura motorizzata
Characteristics
Five-year warranty
Stainless steel screws
Sound insulation
Tax deductible
Rain resistant
Sun resistant
Wind resistant
Load resistant
FINITURE
ST01 RAL9010
Bianco opaco
ST11 RAL7037
Grigio polvere opaco
PL09
Grigio grafite
ST03 RAL8017
Marrone opaco
ST02 RAL1013
Avorio opaco
ST10 RAL7016
Grigio antracite opaco
Corten
(ruggine antico)
