PAREO UP BALAUSTRA
Double or triple-panel telescopic railing
“Transparent and always open to the world, The barrier is no longer confining.”

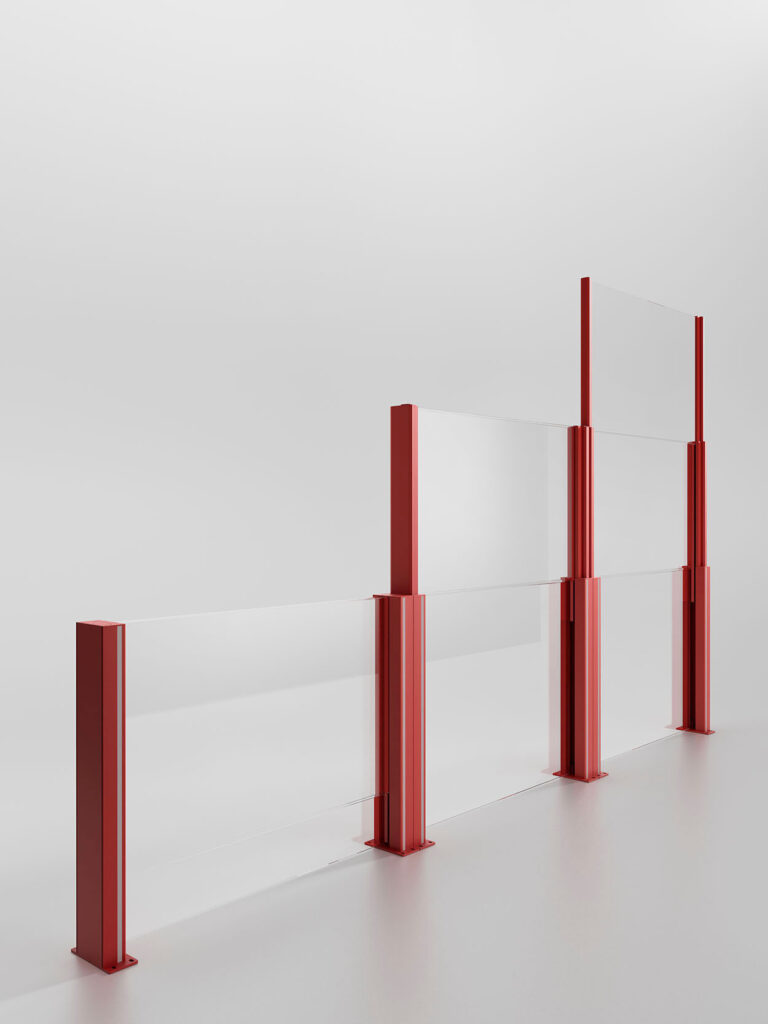

Up to 2.7 metres with a patented telescopic system
The only railing without handrail composed of two or three tempered and laminated glass panels. The internationally patented Up & Down pneumatic system raises the panels to heights up to 2.7 metres with a touch, for modular protection against wind, noise and rain.
Safety, design and transparency at every height
Pareo Up Balaustra is equipped with a fixed safety-glass module serving as a railing in installation contexts above one metre. The structure is also certified by the Istituto Giordano for wind resistance (Class 6 – UNI EN 13561:2015) and dynamic load (2 kN – UNI 11678:2017).
It’s easy to raise or lower the panels incrementally manually or with the press of a button, even with corner modules.
The lifting system is concealed inside the aluminium structure that can be customised with any smooth finish and elegant LED lighting.
Configurations
3 Panels
UP 2/A – UP 2/B – UP 2/C – UP 2/D
2 Panels
UP 1/A – UP 1/B – UP 1/C
Technical information
International patent
PCT/IB2018/051311
Horizontal static load resistance
UNI 11678:2017 2.0 kN/m (Istituto Giordano)
Wind load resistance
UNI EN 13561:2015 Class 6 (Istituto Giordano)
Width
Up to 1,350 mm
Height
Up to 2,700 mm
Profiles
Aluminium
Safety glass
- 10.10.2 laminated tempered glass fixed module
- 8.8.2 laminated tempered glass fixed module
- 6 mm tempered glass retractable module
Glass
- Transparent
- Extra clear
- Smoked
- Bronze-tinted
- Frosted
Base
Stainless steel (painted to match)
Optional

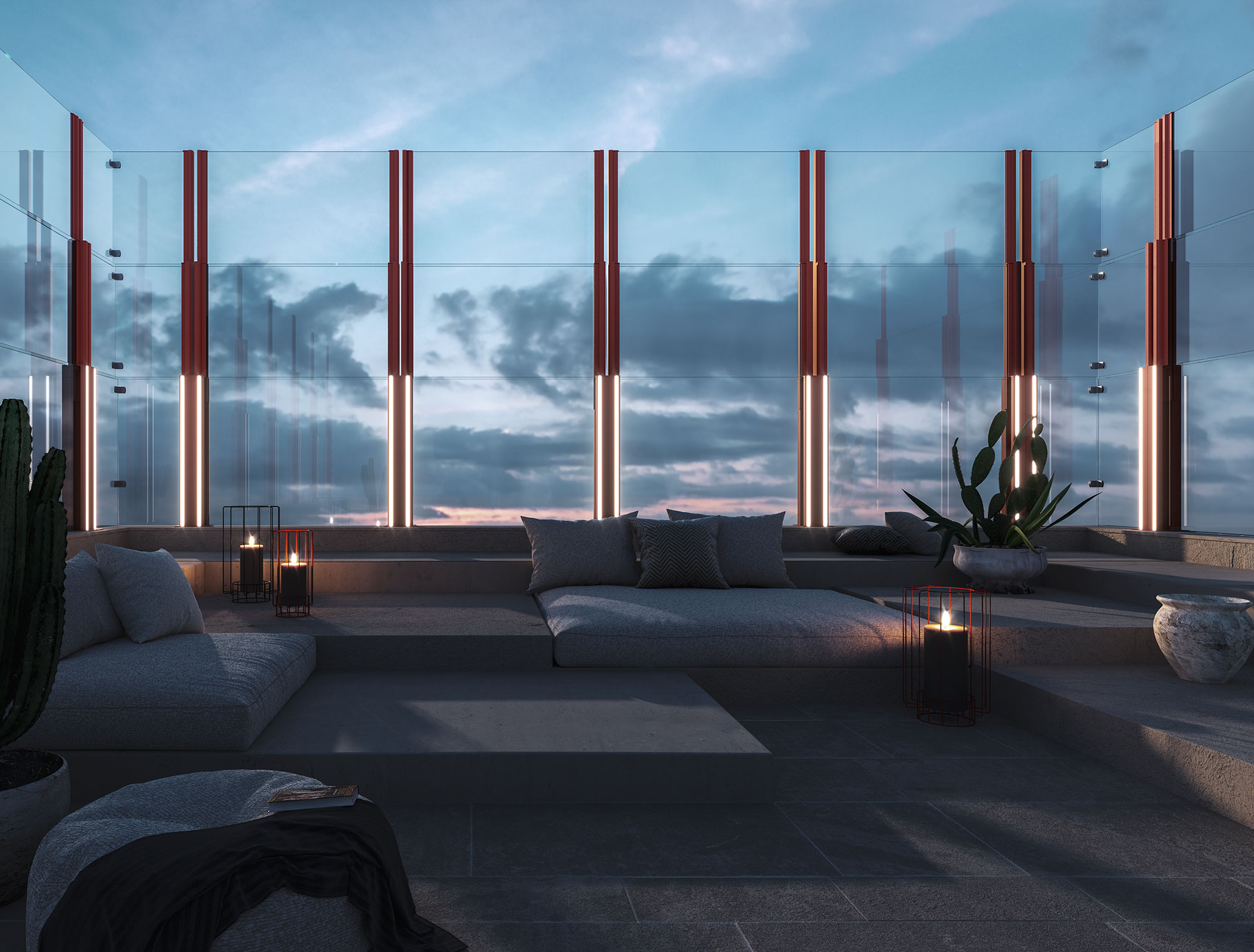

LED lighting
Characteristics
Five-year warranty
Stainless steel screws
Rain resistant
Sun resistant
Wind resistant
Patented Up & Down system with up to three panels
